Trouble with Many-to-Many relationship

[jellyroll12]

I'm new to fileMaker, but have been reading a lot on one to many and many to many relationships... but still stuck. I've tried creating a 3rd table keying off elements of two other tables. But I'm not getting any results (populated fields)

In a nutshell I've got a database that idenitifies Composites which are made up of Roles. Composites can have many Roles under them. The same Role can appear in multiple Composites.

Then I have the Role to Transaction Code relationship in which Transaction codes can similarily vary in Roles they are housed in.

Under "test" layout I was attempting to populate results.

Any direction would be appreciated.

v5.fp7.zip

[Ender]

It's usually easier to populate the join table through portals, that way one of the foreign keys is populated by the relationship. I have added a portal to each of your Composite and Role layouts so you can see how it works. Adding a value list of the available Role/Composite IDs simplifies data entry and ensures referencial integrity.

I have also renamed your tables so they are clear about the entities they represent, and changed your recordIDs to be auto-entered serial numbers, to ensure all Composites and Roles have IDs (so they can be used in relationships.)

Good luck, jellyroll!

CompositeRolev5.fp7.zip

[jellyroll12]

Looks good. Though I'm having trouble when I import records. It does not seem to update the relationship on the portal. Any ideas?

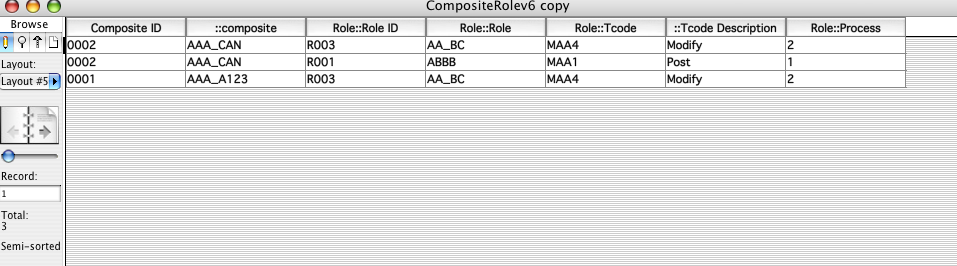

However I did get the data in the format I need, much appreciated. The portals are relaying the data via a new layout that wasn't functioning before :

Orson Scott Card rocks!!

Edited February 3, 2006 by Guest

[jellyroll12]

The issue appears to be that the Composite_Role Table is not updating to the new imported records. This isn't something I have to do manually is it?
