Hierarchical JSON Viewer / Editor

By Andy Persons & Doug West

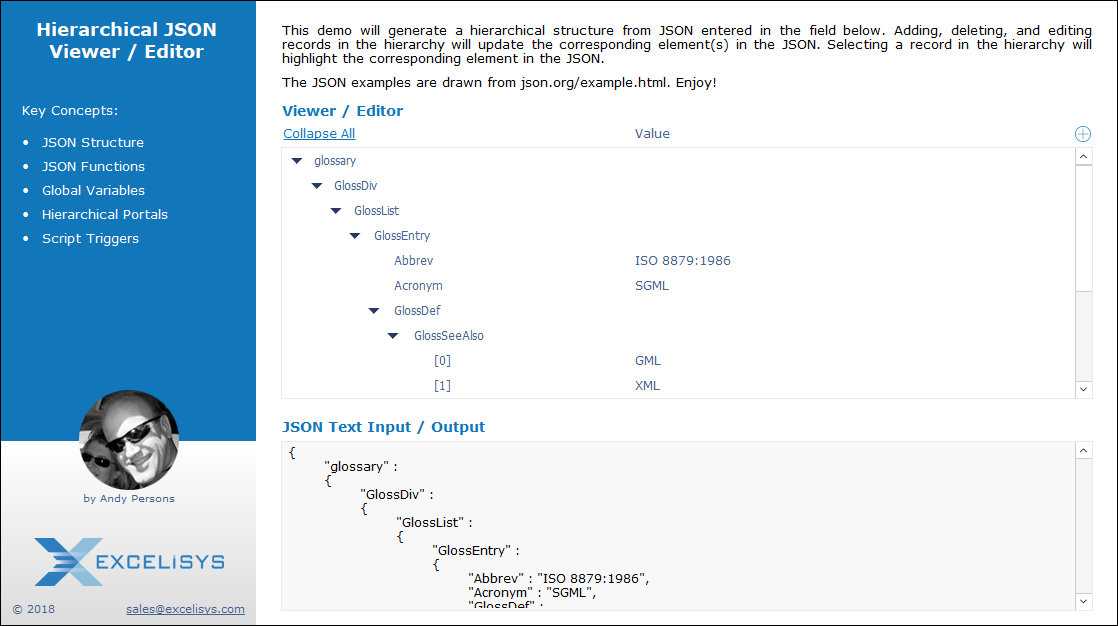

One of the standout new features of FileMaker Pro 16 is native support for the JSON data-interchange format. In addition to providing easy integration with a host of online services, it also provides developers with the tools to create robust hierarchical structures for use entirely within FileMaker. This hierarchical JSON viewer / editor file provides some tools for visualizing, manipulating, and leveraging JSON text.

Features

• Automatically creates a representation of any JSON text as a hierarchical portal of records, where individual elements can be expanded and collapsed
• Dynamically replicates changes to the hierarchical records in the JSON text, including add, edit, and delete actions
• Highlights the corresponding JSON element when a record is selected

Applications

• Easily visualize large JSON text, collapsing nodes to focus on just the relevant sections.
• Manipulate JSON without needing to worry about the correct syntax
• Convert JSON returned from a web service directly into usable Filemaker records, customizing it to your needs
• Create and store hierarchical structures entirely in text (such as global variables), and display it as hierarchical records on the fly

How it Works

• When JSON text is initially entered, the “JSON – Create Children” script retrieves the root keys using  JSONListKeys(), loops through the result, and creates the root records.
• When an element is eXpanded, the same script creates its child records if they don’t eXist and eXpands the hierarchy.
• When eXpand All is clicked, a similar script “JSON – Create All Descendants” loops through every element recursively and creates all descendants.
• Values for each record are retrieved and set using JSONGetElement().
• To keep things streamlined, JSON key paths are used for the parent-child keys.
• Records are marked as arrays based on the presence of a left bracket (“[“) and formatted accordingly.
• Since JSONFormatElements() imposes a standard format, elements have a predictable number of leading and trailing lines. These are recorded in lines_leading and lines_trailing, respectively. They are then used in the Highlight Element script to calculate which part of the JSON text should be highlighted when an element record is clicked.

Enjoy!

•• Download - JSONViewer.fmp12 ••

---
