Conditional formatting

[Karina_TX]

Hi,

So i want balance field to be red when it is less that the amount_due and green when it is equal to amount_due. How do i do that? there is a simple calculation in the balance field. I tried conditional formatting both value and formula but didn't work. Thanks.



[Lee Smith]

See if this works for you

For the red

Confitional Formatting yourField::Balance  ≤  Confitional Formatting yourField::Amount_Due

For the green

Confitional Formatting yourField::Balance ≥ Confitional Formatting yourField::Amount_Due

[Karina_TX]

that didn't work.

[Lee Smith]

Strange, it work in my test file.

can you attach your file?

43 minutes ago, Karina_TX said:

that didn't work

BTW. this response doesn't tell me anything.

Edited October 29, 2017 by Lee Smith
added BTW

[Karina_TX]

i am using my phone i dont have internet in my house yet. ok here is what i did:

i right click on the balance field click conditional formatting, click add, in the condition section

value is less than amount_due

fill color red

another add

value is equal to amount_due

fill color green

after i hit ok it fills the field with red wether it is less or equal.

Edited October 29, 2017 by Karina_TX

[Lee Smith]

Will you have access soon?

Try changing the operators from the "Equal to or" to just the  Greater than and Less than.

[Karina_TX]

Hi Lee,

I just got internet. I attached my file Please tell me how to fix that problem because i tried both solutions did not work. Thanks a lot.

Property Database Copy.fmp12

[doughemi]

See if this helps.

Property Database Copy_DH.fmp12



EDIT: Your sample does not show your attempt. Note that the calculation in my Balance field is unstored. Is yours?

Edited November 1, 2017 by doughemi

[Karina_TX]

i couldn't see the conditional formatting every time i click i get this error . can you write what you did?

[Lee Smith]

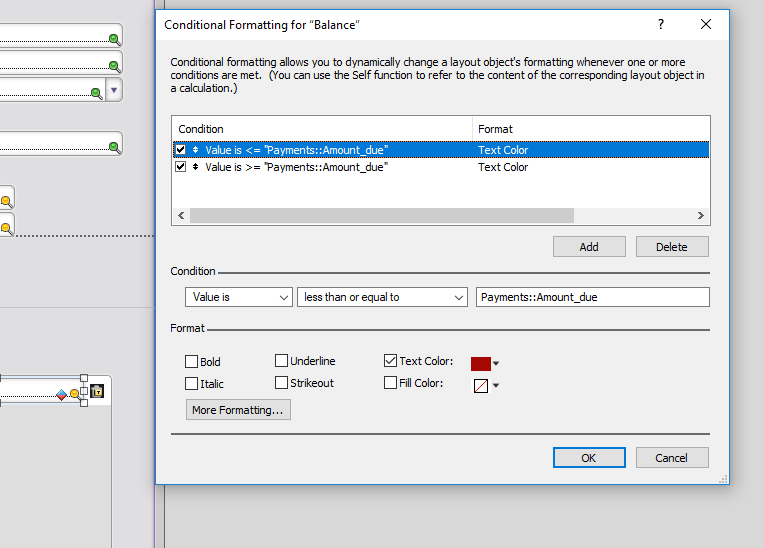

I modified your file to show what I suggested before. I think you misunderstood what was to be put into the Conditional Formatting boxes

Property Database CopyMod.fmp12

I should have put your fields without the Confitional Formatting yourField::   i.e. just Balance and Amount_Due

On 10/27/2017 at 9:22 PM, Lee Smith said:

Balance  ≤ Amount_Due

For the green

Balance ≥ Amount_Due

HTH

Lee

Edited November 1, 2017 by Lee Smith
added more information

[Karina_TX]

Am sorry i attached the wrong file.

Property Database Copy.fmp12

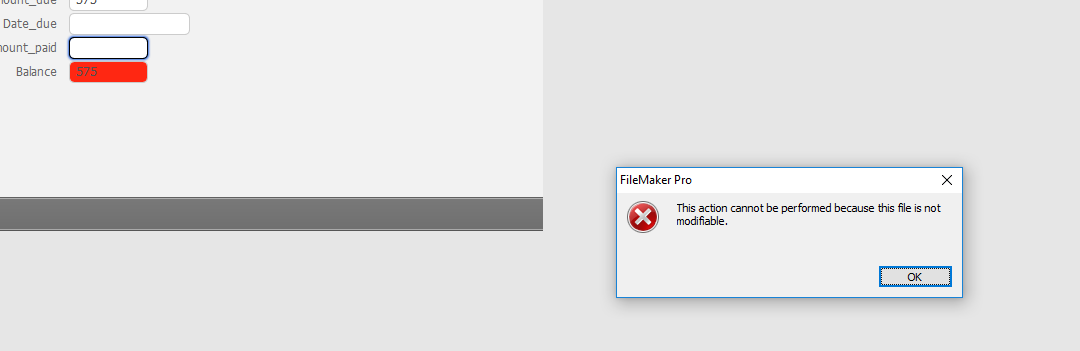

i can't do anything with the file it gives me error "that i can't modify it".

please a screen of the formatting box so i can try it.

[Lee Smith]

Does this work as you want?



Property Database Copy.fmp12

[Karina_TX]

Part of it works. what about when the balance is equal to the amount due should be green?

Can you please post a screenshot of the formatting box? so i can see what you did.

[Lee Smith]

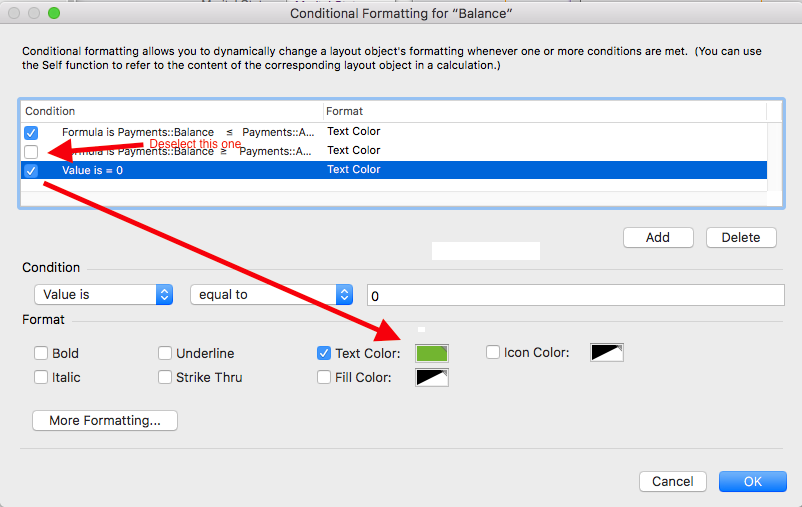

Open the Conditional Formatting on the balance, and change the the purple (the color of the text in the rest of the layout) to Green.

[Karina_TX]

it worked Thank you Lee Smith.
