Is there any way to rotate a portal horizontally accross the page instead of vertically?

Only when printing the portal . -bd

I've recently had a need to scroll the portal horizontally as well. It's the only time I've ever had the need to rotate anything, and portals are one of two items it cannot be applied to (however now that I find I can't rotate tabs as well my mind starts popping out all the cool possiblities of if I could). I can't believe in five years it's never come about.

I have a settup where a series of tall single-row portals with fields running from top to bottom, all set to display a specific portal row in sequence from one to ten, display across the layout. However, the number of rows that can possibly need displaying is not pre-determinable, and needs the ability to be scrolled along.

If anyone has ever heard anytihng that may be possible please speak up. Even it involves programming a plug-in.

Thanks -CK

Do a search of the Forum using the keywords of [color:blue]+Horizontal +Portal (Include the plus signs as shown) and you will find several past treads on this topic.

It did come up here.

Since the requirement there was more complex than yours, and since version 8 makes it even easier, here's a simplified demo of essentially the same technique.

Well, the demo will have to wait until this message goes away:

There was a problem loading this page:

The moving of uploaded file has failed. Usually this is because where you are uploading to isn't writable. Make sure permissions on this directory and files within are writable

.

One more try.

ScrollPortal8.fp7.zip

Hi comment,

Thanks for sharing, and I'll be checking it out in a moment. However, isn't Horizontal = left to right?

Lee

:o

It's a demo of a technique - apply it as you will.

This is sweet. And yes, it can be turned sideways. The beauty is that it works no matter what!! I hope you don't mind my taking the liberty of providing it sideways, Michael. Since vs. 7, we can specify portal row numbers. So, by specifying one row, we can string them across the layout (as attached) ...

The solution doesn't care how you arrange the rows - up - down - sideways - or each row two feet apart. Ah, GetNthRecord() in action ... :wink2:

ScrollPortal8REV.zip

Everytime I click the up or down buttons on the layout, even if I'm in layout mode, Filemaker crashes on me. Happening to anyone else?

Hmmm, works fine for me. What vs. are you using? I don't recall any unexpected behaviors regarding portals. Maybe try downloading another copy? :wink2:

Hi comment and LaRetta,

Thank you both for posting your files, I didn't know that this had changed in v7/8. However, I have never had a need for a Horizontal Portal, and I develop around large portals.

BTW comment, I couldn't open the link you pointed to yesterday, because I kept loosing my connection to the Forum. Hopefully they have taken care of this PROBLEM. I did take a look at it this morning, and discovered that it was one of those post, that I had paid little attention a year ago, because i didn't have v7/8, nor a need.

Lee

Hi Lee

The current business I'm designing for wants EVERYTHING in crosstab (pivot table) horizontal and they want EVERYTHING in portals. My graph shows it too. I don't KNOW this is how Michael would have done it ... I just got excited.

L

LaRetta,

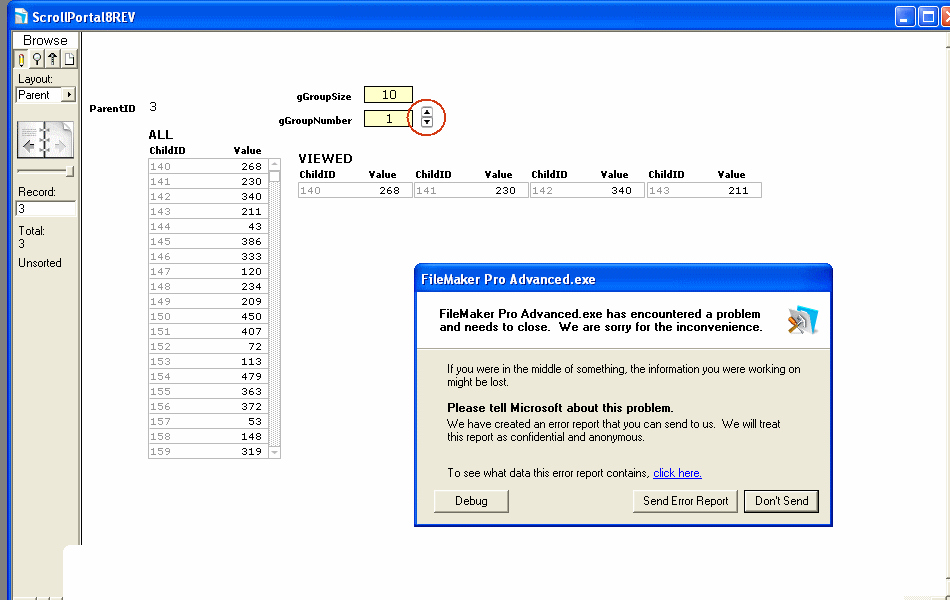

I downloaded your example and my system blows-up every time I mouse over your up/down scroll handles. I took a screenshot and drew a red circle around the offending object. See the attachment.

I'm running FMP8A on Windows XP SP2. The hardware is an HP 7600, Pentium 4, 3.4GHz w/ 1G RAM.

It happens within 1 second everytime I mouse over it. I don't click, just simply a mouse over that object and FM abruptly ends every time.

I've seen this happen on stuff designed by other FM developers before. It seems to be connected to non-native FM graphics.

Do you know anything about that particular graphical object?

Well, I was going to add the attachment but I can't find where that is done. I'll just post and try to edit the attachment in later.

Edited April 13, 200619 yr by Guest

Remember this is Michael's demo. I just changed the portal to one row, duplicated it, changed the second version to row 2 and 1 row etc. Makes no sense to me either. I'm on 8.0v2 XP Pro. Very weird! Try taking Comment's original demo - that's the proper one anyway. My copy works fine - both original and my changed one.

Oh. I never should have jumped into someone else's demo anyway. My excitement gets me in soooo much trouble ... :smile2:

LaRetta,

So sorry, I didn't mean to point fingers. I would just like to find out why some of my systems crash like this. The PC I'm on now is only a few months old. My former system would crash on non-FM graphics too but... I do have other Windows boxes that will handle this without a problem.

Oh no, no problem Ted! I wasn't feeling blamed. I too want to find out why. Remember this is Michael's demo (and GREAT idea). I just changed the portal to one row, duplicated it, changed the second version to row 2 and 1 row etc. Makes no sense to me either. I'm on 8.0v2 XP Pro. Very weird! Try taking Comment's original demo - that's the proper one anyway. My copy works fine - both original and my changed one. Does his original crash you? If not, do what I did - change the portal to one row, duplicate it and make the second copy portal row 2 and 1 row etc.

Oh. I never should have jumped into someone else's demo anyway. My excitement gets me in soooo much trouble ...

I probably somehow damaged his demo. I didn't touch anything else - and I do that all the time (duplicating portals and changing their display number)!? And this file didn't crash or anything!

Is Forums still crashy for you? I keep crashing - and I crashed several times while trying to attach the file ... I wonder if it's connected!!

Went back and downloaded comments file, it todes the same thing. Something with that graphic is causing it to crash. It doesn't even matter if I'm in layout mode.

So, its not your fault LaRetta! It wasn't anything you had changed.

I too am running Windows XP SP2 on a Newer HP with 1gig of Ram. 3.2ghz, P4. Strange, anyone else on a Non-HP Windows machine confirm crashing problem?

Hi Zero / LaRetta,

So not only are Zero and my systems crashing, FMForums is too. That old saying; When it rains it pours.

Zero, I wonder if it may be connected to another software application that you and I use but most other folks don't. Maybe a shared DLL?

On my machine I also have MS Office Professional, Homesite 5, Crystal Reports, TOAD (Tool for Oracle Application Developers), and a bunch of smaller utility type applications. Anything in common?

FYI. I crash in Layout mode as well. If I delete that graphical object everything is fine.

I'm not running any of that. And my forums aren't crashing at all :o

.. And my forums aren't crashing at all

You must be timing things perfectly because the the Forum has been down a lot for over a day. See Feedback Topic.

Lee

All the 'graphics' in my file are native FMP objects.

Really! I had assumed that they were built using something else. So those up/down scrolling do-dads are just made from native FM lines, rectangles, etc? Were they made in an earlier FM version? If so do you happen to remember which?

I tried ungrouping them but it still crashes.

IIRC, they were made in 7.0v3. How do you fare with the original file?

Same problem in the original.

I have narrowed it down a bit. What I did was zoom in to 400%, window around the entire object and ungroup until "ungroup" was greyed out. That was 3 times I think. I then picked the assembly apart by windowing around the tiny individual objects and moving them with the arrow keys. Once the whole thing was completely exploded I ran my pointer over each object one at a time. All are fine except for the tiny 1px line(?) or rectangle(?). There are a couple of those in there and when I mouse over either of them it is an instant crash. Using the Object Size window I changed the horizontal length to 2px and the problem is solved.

Now what I'm going to do is create my own 1px line using v8 and see if that crashes too.

I don't have any problems with the files. The graphic seem to be Native FileMaker lines and boxes, as I can change them.

Okay,

I just created a brand new file using FM8Av2 on Windows XP. I have no other applications open, only Filemaker. I immediately closed the Define Database window. I went into the layout mode and created a horizontal line. I opened the Object Size window and changed the horizontal size so it is 1px long. I went into browse mode, moused over the object and its CRASH CITY.

Any ideas?

Zero,

I'm running a Radeon X300 Series video card. How about you?

Hi Ted,

This may not be related but, awhile back I posted called Moving Phone. At the end, I mentioned a problem with lines (created in vs. 7) when used in 8.0v2 (Windows XP). Those lines wouldn't be identified by Object Size when on line between Header/Body etc. But what I DIDN'T mention was that, later, that strange line crashed me once. I grabbed my backup and tested it. When I selected the line and Arrange > Send To Back, it didn't crash again. But I decided not to risk it and deleted the line entirely.

But object dimensionality (is that a word?) seems to (occasionally) get *confused* in 8.0v2 and I think it may be because of the new layering aspects for tabs. And I don't think Windows is handling it as well as Macs. Just for kicks, would you try something? Select the entire buttons and keep hitting upgroup until it greys. De-select and save the layout. Circle them all again (in layout mode), Ctrl-C, Ctrl-X and save layout. Go back to layout mode and Ctrl-V to paste the buttons. Then select them all, Arrange > Send To Back and Save layout. Then re-attach scripts and let me know if you crash again.

I would try this myself but I can't make it crash and I'd really like to figure it out.

L

Hi LaRetta,

Just for grins I recreated a 1px horz line on my home PC and to my great surprise IT CRASHED TOO. There is a big difference in my home and work machines. I'm running W2K on a much older Dell box. I have Homesite on both but Zero said that he didn't run that software.

Do me a favor and just create a 1px long horizontal line on a brand new file. Mouse over it and see if you crash. I'm really curious.

Okay. I created test file and 1 px horizontal line. Then I ran my system to smokin-speed ... moving the line around, saving layout; placing line on header line; exiting FM and even rebooting - everything I could think of, I tried. No crashy ...

Then I switched my res to 800 x 600 (from 1024 x 768), rebooted, and again worked it hard. Nada.

Okay, now try my idea and see if there is a difference. If not, it could be a tough cookie to pin down - just like the moving phone issue. :wink2:

LaRetta,

First off thank you testing my method.

I followed your exact steps as requested; going in and out of the layout mode where noted, CRTL + X, Send To Back, ungrouping, the whole works. It crashes instantly when I mouse over the object.

I also tried sending to back on my other file which contains a single 1 px long horizontal line and nothing, and I mean NOTHING, else. It still crashes too.

Very strange.

This whole thing is an interesting concept, anyone have any idea how you could introduce a horizontal scrollbar?

Ugo Di Luca, one of the really prolific posters and creative FMers, who hasn't been around for a while now, created a horizontal portal using GetField (I think). You might try doing a search in the Samples Forum, for 'Horizontal Portals'.

Steve

Hey, thanks all...I just recently get around to looking into these examples and it seems like the matrix is the best fit. I've since figured out a way to whittle down what needs to be displayed but why work around it when there is a truly dynamic solution. Yall are the best!

What is "the matrix"?

I was referred to a link, I thought it was from this thread but definately somehwere in the forum here. It was an example from 24U Software of a horizontal portal using GetNthRecord. It also contained an example of a matrix-style portal. This matrix deal is what I really was looking for because many of the layouts I need to create are reproductions of excel spreadsheets (ironically, they will most likely need to be exported as excel documents as well, but structured like the layout as opposed to the one row of data across the sheet as the default produces). I've chopped up the file pretty good trying to deconstruct it otherwise I'd post it but here's a link to the download page.

http://www.24usoftware.com/Portals#download

Hello all,

I followed _chrisK's link to 24U's horizontal portals demo file and was also impressed with this as a solution until I tried to edit one of the matrix cells from browse mode.

Each of these matrix cells are calculated and therefore are uneditable. My client needs to be able to adjust any of the values being displayed within these cells.

The number of rows or columns making up each instance of the matrix varies. In my clients case the rows are an Activity Entry and the Columns are the Person working on that activity. The cells are how many time units that person spends on that activity.

I have attached an excel document of exactly what she is after. The section hilighted in yellow is the part that I am baffled in how to develop.

I want to start a matrix with a default set of perhaps 7 activities (which my client will then either add to or remove from) and also start with a default set of people. Sometimes one or two people may not be required and so will be deleted from the matrix, however it is also possible that 10 extra people may be needed for one instance of the matrix.

So the key here is to make the rows and columns dynamic whilst still retaining the capability of setting how many time units each of them will need to spend on each activity.

Could anyone give me a steer in the right direction or recommend another demo file that solves this issue.

Thanks in advance,

Toby

HorizontalPortal.zip

Yes, the cells are uneditable. I didn't realize that (but should have, and should have mentioned that) because my layouts that would use the matrix are all for displaying final information and strictly draw on records from various layouts throughout my file that are continuoulsy edited throught a job process.

IMPORTANT:

If you got sent here, continue to:

http://fmforums.com/forum/topic/71939-getting-more-out-of-filtered-portals-4horizontal-portal/

Are you still using version 8?



If not, please update your profile to reflect your current FileMake version, OS, and platform in case they have changed.



To make any changes, just follow the steps you will find here. MY PROFILE.

Lee, considering this thread is from 2006 the OP would likely have been using version 8.

What is the purpose of your post?



Either they have or they haven’t upgraded. If they have, then it should be included in their profile and if they haven’t, then we’ll know what functions, etc. were available (I think).



Lee

Lee, I understand what you're saying (if indeed your post was directed my way) but this thread was from 2006 and it's uncertain, to say the least, if the OP is still a member or still active on the forum. That's all. Still, I suppose, a good idea to remind the poster to update his/her profile. This is probably the first time I've seen a post from 8 years ago being replied to in the present!

And the value of this post is even more relevant today than ever, particularly with the improvements to filtered portals in versions 12 and 13.  :-)  I'm glad to see it popped forward ... more things like this should be.

BTW, would you explain the conditional formatting on the thumbnails for me?  When I view the colours scrolling forward, I see the mathematics and understand that part, but not the purpose of the colorisation.  Is it just to show that one can use colour to identify the record according to a calculated value?  :-)

Sorry about the commotion caused by my recent post in this old thread. It has come to my attention that people are still referred to here and I wanted to make sure they don't miss a more modern version.





BTW, would you explain the conditional formatting on the thumbnails for me?  When I view the colours scrolling forward, I see the mathematics and understand that part, but not the purpose of the colorisation.  Is it just to show that one can use colour to identify the record according to a calculated value?  :-)



IIRC (!) the thumbnails are designed to simulate images by placing texts in a container field (in order to keep the file size down). The conditional formatting is just another way to enhance that illusion.

Comment, if there has been commotion (?) I likely caused it!

Edit: I just noticed the original post is from 2001!
